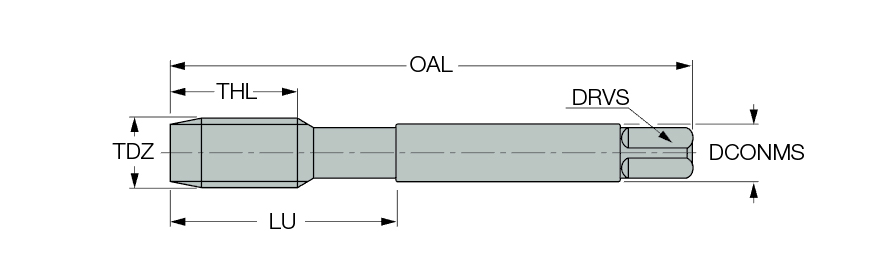

TPG M-9X1.25-S HEST
| Thread Standard | THFT | Cutting Edge Material | HSS |
| Thread Size | M9 × 1.25 | Tool Type | Machine Blind Hole Taps |
| Thread Diameter Size (TDZ) | M9 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Threads per Inch (TPI) | 20 | Connection Diameter Machine Side (DCONMS) | 0.354″ |
| Thread Pitch (TP) | 1.25 mm | Thread Cutting Part Length (THL) | 0.787″ |
| Thread Tolerance Class (TCTR) | H5 | Measurement Type | Inch |
| Usable Length (LU) | 1.38″ | Series/List # | T8216 |
| Overall Length (OAL) | 3.543″ | Grade | HEST |
| Coating | Steam tempered | Body Material | Carbide |
| Flute Count (NOF) | 3 |
Product Features
| Family Description | HSS gun point machine taps according to DIN 13 for ISO Metric coarse threads on steel with good machinability. | Country of Origin | Israel |
Shipping Info
Package Weight
0.093
