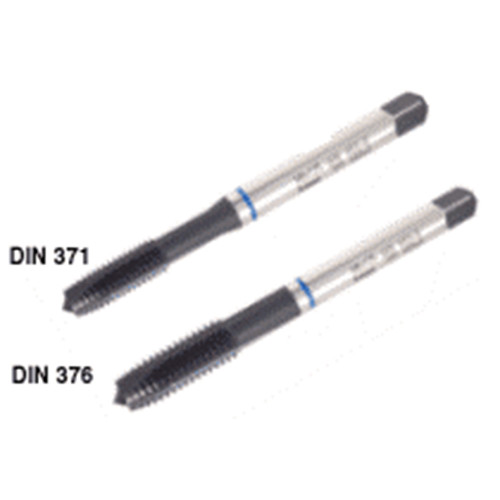

TPG M-12X1.75-S HEST
Spiral Point Tap; M12 × 1.75 mm - 20 ; 4.331″ OAL ; 4 FL ; HSS ; Steam tempered ; H5 ; Series T8216
| Thread Standard | THFT | | Tool Type | Machine Blind Hole Taps |
| Thread Size | M12 × 1.75 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Thread Diameter Size (TDZ) | M12 | Connection Diameter Machine Side (DCONMS) | 0.354″ |
| Threads per Inch (TPI) | 20 | Thread Cutting Part Length (THL) | 0.945″ |
| Thread Pitch (TP) | 1.75 mm | Drive Size (DRVS) | 0.276″ |
| Thread Tolerance Class (TCTR) | H5 | Measurement Type | Inch |
| Overall Length (OAL) | 4.331″ | Series/List # | T8216 |
| Coating | Steam tempered | Grade | HEST |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Cutting Edge Material | HSS | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | HSS gun point machine taps according to DIN 13 - ISO Metric coarse threads on steel with good machinability. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.137
