TPG M-5X0.8-H HE
Spiral Point Tap; M5 × 0.8 mm - 20 ; 2.756″ OAL ; 3 FL ; HSS ; Uncoated ; H5 ; Series T8216
| Thread Standard | THFT | | Tool Type | Machine Blind Hole Taps |
| Thread Size | M5 × 0.8 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |

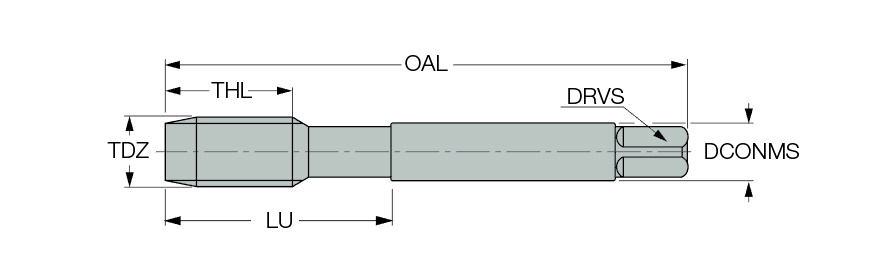

| Thread Diameter Size (TDZ) | M5 | Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Threads per Inch (TPI) | 20 | Thread Cutting Part Length (THL) | 0.591″ |
| Thread Pitch (TP) | 0.8 mm | Drive Size (DRVS) | 0.193″ |
| Thread Tolerance Class (TCTR) | H5 | Measurement Type | Inch |
| Usable Length (LU) | 0.98″ | Series/List # | T8216 |
| Overall Length (OAL) | 2.756″ | Grade | HE |
| Coating | Uncoated | Body Material | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | HSS |
Product Features

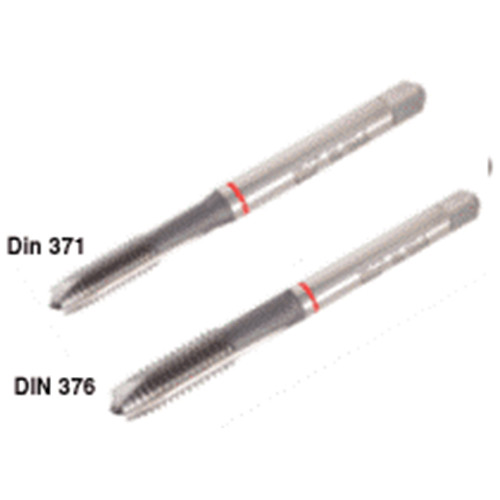

| Family Description | DIN 13 HSS gun point machine taps - ISO metric coarse threads, for hardened steel and high temperature alloys. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.031
