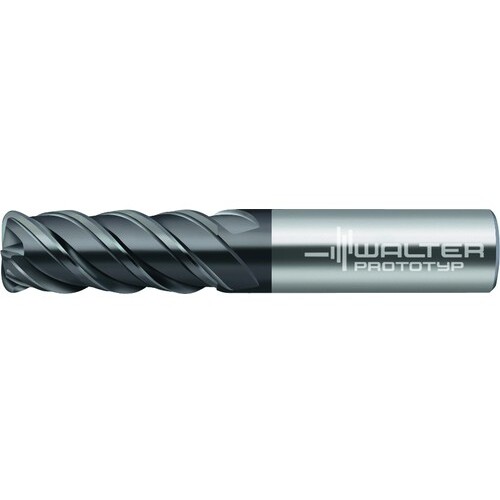

6mm Dia. × 0.2mm LOC 4 Flute Carbide TAX 50° Helix
SQ End Mill; 6 mm Dia. × 0.2 mm LOC × 6 mm Shank Dia. × 100 mm OAL ; 3 mm RE ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Helix Angle (FHA) | CW|50 Degrees |
| Depth of Cut Maximum (APMX) | 0.2 mm | Shank Type | Round |
| Overall Length (OAL) | 100 mm | End Shape | Corner Radius |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 3 mm |
| Coating | AlTiN | Decimal Equivalent | 0.2362″ |
Product Features
| Family Description | H3094718–6–100 | Country of Origin | Germany |
Shipping Info
Package Weight
0.102
