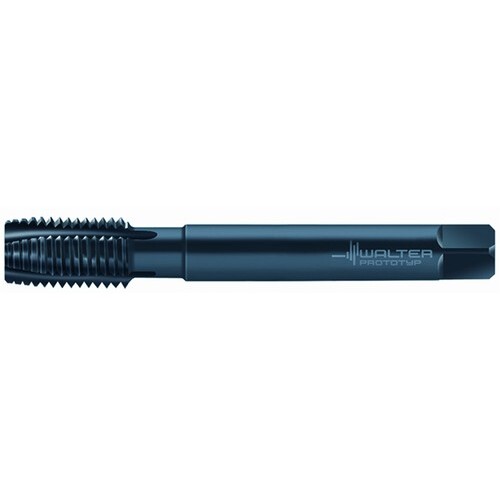

3/8-16 UNC 2B 3 Flute HSS VAP Spiral Point Tap
Spiral Point Tap; 3/8″ - 16 ; 4-3/32″ OAL ; 3 FL ; HSS ; 2B
Additional Tariff Surcharge of 8 %
| Thread Standard | NC | Connection Diameter Machine Side (DCONMS) | 0.276″ |
| Thread Size | 3/8″ - 16 | Thread Cutting Part Length (THL) | 25/32″ |
| Thread Diameter Size (TDZ) | 3/8″ | Flute Helix Angle (FHA) | CW|15 Degrees |
| Threads per Inch (TPI) | 16 | Flute Length | 1-29/64″ |
| Thread Tolerance Class (TCTR) | 2B | Flute Type | Straight |
| Overall Length (OAL) | 4-3/32″ | End Shape | Spiral Point |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Standard | DIN 2184-1 | Measurement Type | Inch |
Product Features
| Family Description | M22263-UNC3/8 | Country of Origin | India |
Shipping Info
Package Weight
0.078
