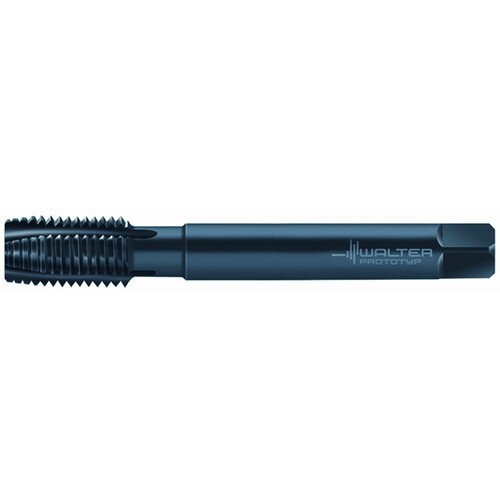

M33x3.5 6HX 5 Flute HSS VAP Spiral Point Tap
Spiral Point Tap; M33 × 3.5 mm ; 180 mm OAL ; 5 FL ; HSS ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Thread Size | M33 × 3.5 | Thread Cutting Part Length (THL) | 42 mm |
| Thread Diameter Size (TDZ) | M33 | Flute Helix Angle (FHA) | CW|45 Degrees |
| Thread Pitch (TP) | 3.5 mm | Flute Length | 78 mm |
| Thread Tolerance Class (TCTR) | 6HX | Flute Type | Straight |
| Overall Length (OAL) | 180 mm | End Shape | Spiral Point |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS | Coolant Supply Property (CSP) | External |
| Standard | DIN 376 | Measurement Type | Metric |
Product Features
| Family Description | M20263-M33 | Country of Origin | Germany |
Shipping Info
Package Weight
1.535
