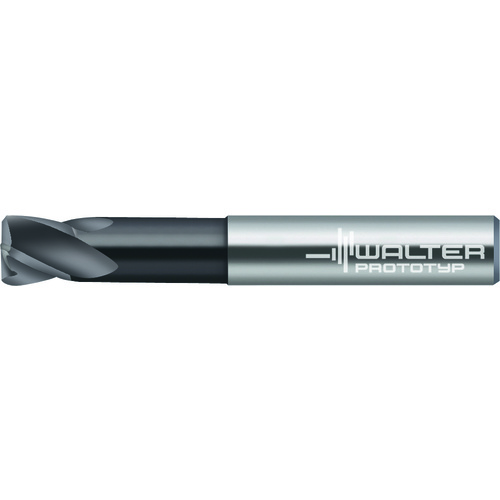

8mm Dia. × 29mm Max Depth 4 Flute Carbide TAX .50m
SQ End Mill; 8 mm Dia. × 29 mm LOC × 8 mm Shank Dia. × 80 mm OAL ; 0.5 mm RE ; 4 FL ; 29 mm LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 29 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 80 mm | Usable Length (LU) | 29 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.5 mm |
| Coating | AlTiN | Decimal Equivalent | 0.315″ |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | H8015828–8–0.5–29 | Country of Origin | Germany |
Shipping Info
Package Weight
0.141
