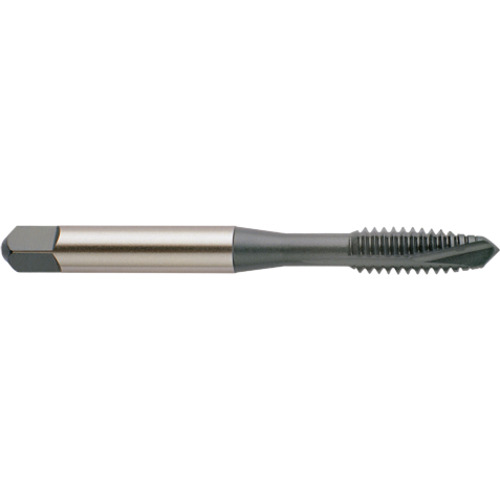

Spiral Point Tap; 5/16″ - 24 ; 2.72″ OAL ; 3 FL ; P-HSS ; Steam Oxide ; H4 ; Series M4
Spiral Point Tap; 5/16″ - 24 ; 2.72″ OAL ; 3 FL ; HSS ; Black Oxide ; H4 ; Series M4
| Thread Standard | UNF | Tool Type | Spiral Point Tap |
| Thread Size | 5/16″ - 24 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Diameter Size (TDZ) | 5/16″ | Thread Cutting Part Length (THL) | 0.669″ |
| Threads per Inch (TPI) | 24 | Tapping Prehole Diameter (Pre-hole) | 0.2746″ |
| Thread Tolerance Class (TCTR) | H4 | End Shape | Modified Bottoming |
| Usable Length (LU) | 1.126″ | Shank Type | Square |
| Overall Length (OAL) | 2.72″ | Coolant Supply Property (CSP) | External |
| Chamfer | 2P-3P | Length Group | 3xD |
| Coating | Black Oxide | Square Size | 0.238″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | M4 |
| Standard | 302A |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.625
Package Height
0.5
Package Weight
0.055
