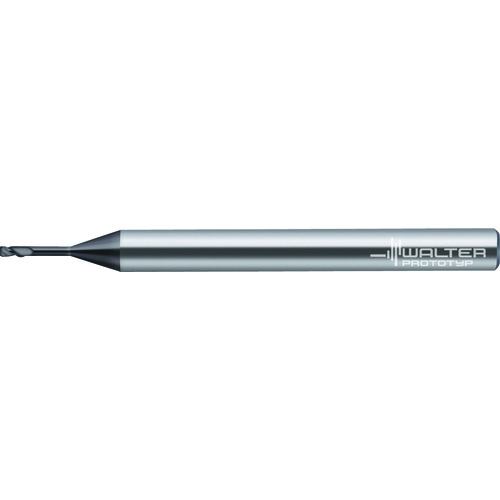

2.5mm Dia. × 6mm Max Depth 2 Flute Carbide TAX .25
SQ End Mill; 2.5 mm Dia. × 6 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 0.25 mm RE ; 2 FL ; 6 mm LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2.5 mm | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Depth of Cut Maximum (APMX) | 6 mm | Shank Type | Round |
| Overall Length (OAL) | 38 mm | End Shape | Corner Radius |
| Cutting Edge Material | Carbide | Usable Length (LU) | 6 mm |
| Coating | AlTiN | Corner Radius (RE) | 0.25 mm |
Product Features
| Family Description | H4044928–2.5–6 | Country of Origin | Germany |
Shipping Info
Package Weight
0.013
