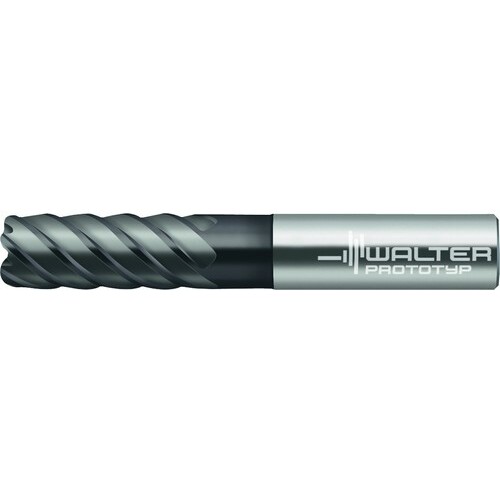

16mm Dia. × 32mm LOC 6 Flute Carbide TAX 2mm CR En
SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 2 mm RE ; 6 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Flute Count (NOF) | 6 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Flute Helix Angle (FHA) | CW|50 Degrees |
| Depth of Cut Maximum (APMX) | 32 mm | Shank Type | Round |
| Overall Length (OAL) | 92 mm | End Shape | Corner Radius |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 2 mm |
| Coating | AlTiN | Decimal Equivalent | 0.6299″ |
Product Features
| Family Description | H8082228–16–2 | Country of Origin | Germany |
Shipping Info
Package Weight
0.576
