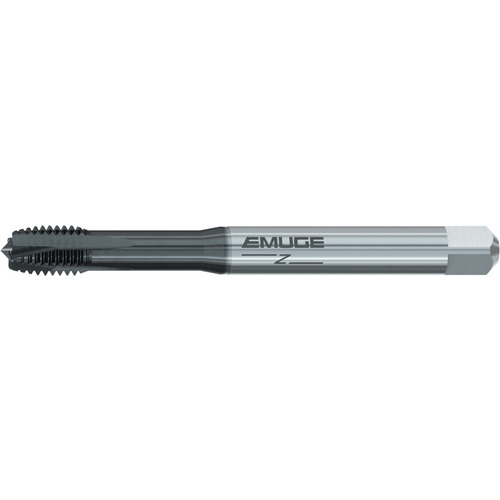

Spiral Point Tap; #8 -32 × 2.48″ OAL ; HSSE PM ; GLT-1 ; UNC ; 3BX ; Series U20A601
Spiral Point Tap; #8 - 32 ; 2.48″ OAL ; HSSE-PM ; TiAlN ; 3BX ; Series U20A601
| Thread Standard | UNC | Standard | DIN | ANSI |
| Thread Size | #8 - 32 | Tool Type | Rekord B-Z |
| Thread Diameter Size (TDZ) | #8 | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 32 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 3BX | Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Overall Length (OAL) | 2.48″ | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Series/List # | BU20A611 |
Product Features
| Remarks | • Rekord B-Z design is typically for through hole applications in long-chipping materials. • Spiral Point creates tight curled chips that are pushed ahead of the tap. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.013
