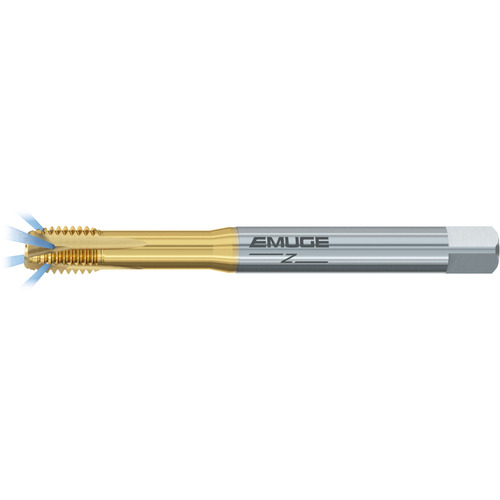

Spiral Point Tap; #10 -24 × 2.756″ OAL ; HSSE PM ; TiN ; UNC ; 2BX ; Series BU088F01
Spiral Point Tap; #10 - 24 ; 2.756″ OAL ; HSSE-PM ; TiN ; 2BX ; Series BU088F01
| Thread Standard | UNC | Tool Type | Rekord B-Z |
| Thread Size | #10 - 24 | Applicable Material | | Steel | Stainless Steel | |
| Thread Diameter Size (TDZ) | #10 | Application | Blind Hole |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | 2BX | Style | Spiral Point |
| Overall Length (OAL) | 2.756″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4P-5P | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Measurement Type | Inch |
| Cutting Edge Material | HSSE-PM | Series/List # | BU088F01 |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord B-Z design is typically for through hole applications in long-chipping materials such as stainless steel, steel and aluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.017
