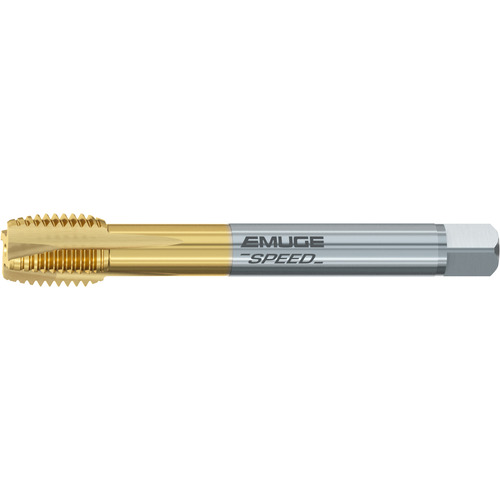

Spiral Point Tap; 3/4″ -10 × 4.921″ OAL ; HSSE PM ; TiN ; UNC ; 2BX ; Series W138F01
Spiral Point Tap; 3/4″ - 10 ; 4.921″ OAL ; HSSE-PM ; TiN ; 2BX ; Series W138F01
| Thread Standard | UNC | Standard | DIN | ANSI |
| Thread Diameter Size (TDZ) | 3/4″ | Tool Type | Rekord B-Speed |
| Threads per Inch (TPI) | 10 | Applicable Material | | Universal Materials | |
| Thread Tolerance Class (TCTR) | 2BX | Application | Blind Hole |
| Overall Length (OAL) | 4.921″ | Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Series/List # | CW138F01 |
Product Features
| Remarks | • Speed taps are able to operate at higher cutting speeds than conventional designs. • Longer tool life and more consistent thread quality. • Speed Taps reduce threading cycle times. | Country of Origin | Germany |
Shipping Info
Package Weight
0.345
