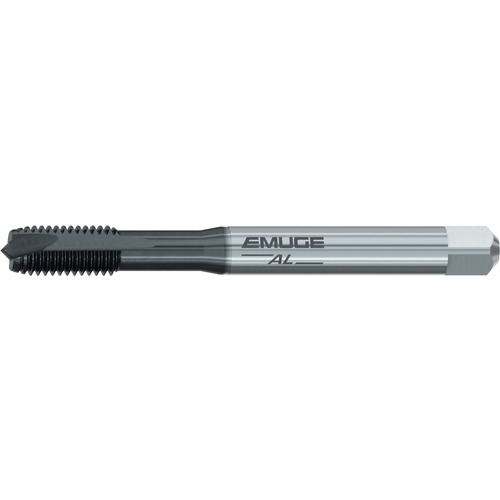

Spiral Point Tap; 1/4″ -20 × 3.15″ OAL ; HSSE ; GLT-8 ; UNC ; 2B ; Series U20S800
Spiral Point Tap; 1/4″ - 20 ; 3.15″ OAL ; HSSE ; DLC ; 2B ; Series U20S800
| Thread Standard | UNC | Tool Type | Rekord B-AL |
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 20 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2B | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Overall Length (OAL) | 3.15″ | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | DLC | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | U20S800 |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord B-AL tap is designed for wrought aluminum materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.037
