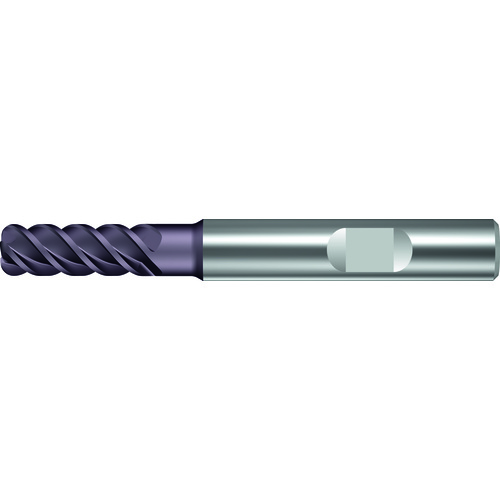

5/16″ Dia. × 13/16″ LOC 4 Flute Carbide TiALN 50°
SQ End Mill; 5/16″ Dia. × 13/16″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 5/64″ RE ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5/16″ | Flute Helix Angle (FHA) | CW|50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 13/16″ | End Shape | Corner Radius |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 5/64″ |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | AlTiN | Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | MC326.7.94W4D203 WK40TF | Country of Origin | Germany |
Shipping Info
Package Weight
0.152
