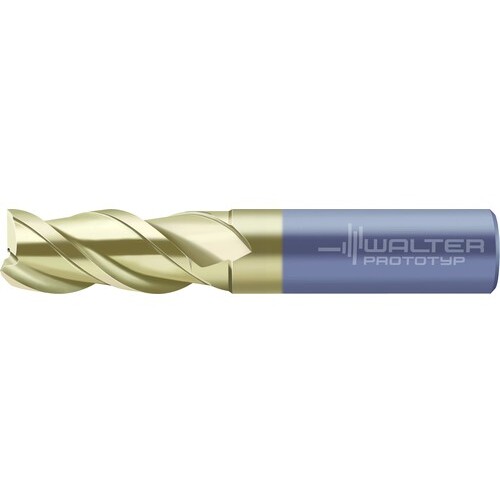

5mm Dia. × 11mm LOC 3 Flute Carbide TAZ .16mm CR E
SQ End Mill; 5 mm Dia. × 11 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.16 mm RE ; 3 FL ; Carbide
| Cutting Diameter (DC) | 5 mm | Flute Helix Angle (FHA) | CW|45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 11 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 16 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.16 mm |
| Flute Count (NOF) | 3″ | Decimal Equivalent | 0.1969″ |
Product Features
| Family Description | H4036217–5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.052
