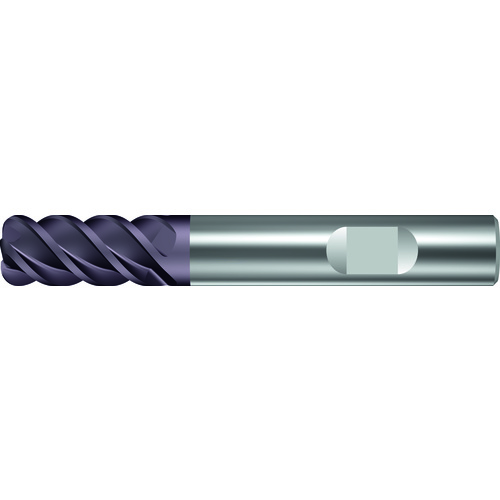

3/4″ Dia. × 1-1/2″ LOC 4 Flute Carbide TiALN 50° H
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.16″ RE ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | CW|50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-1/2″ | End Shape | Corner Radius |
| Overall Length (OAL) | 4″ | Corner Radius (RE) | 0.16″ |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | MC326.19.1W4D406 WK40TF | Country of Origin | Germany |
Shipping Info
Package Weight
0.78
