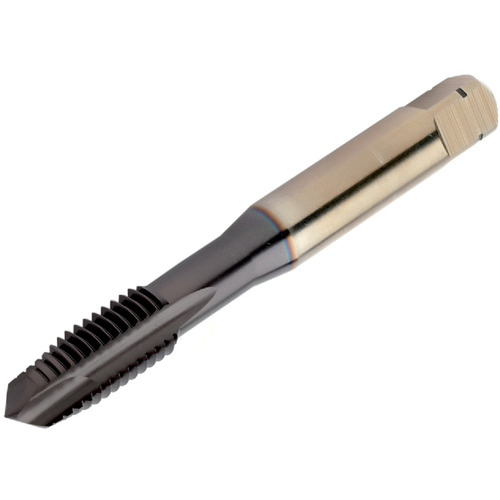

E049M5 M ISO P Spiral Pt M5
Spiral Point Tap; M5 × 0.8 mm ; 59.8 mm OAL ; 3 FL ; HSSPM ; 6H
| Thread Standard | Metric | Standard | ISO529 |
| Thread Size | M5 × 0.8 | Applicable Material | Steel |
| Thread Diameter Size (TDZ) | M5 | Connection Diameter Machine Side (DCONMS) | 5 mm |
| Thread Pitch (TP) | 0.8 mm | Thread Cutting Part Length (THL) | 11.2 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Usable Length (LU) | 22 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 59.8 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSPM | Measurement Type | Metric |
Product Features
| Country of Origin | SE |
Shipping Info
Package Weight
.2500
