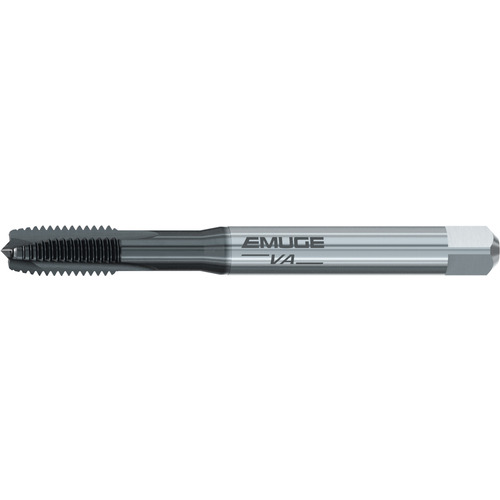

Spiral Point Tap; 5/16″ -24 × 3.543″ OAL ; HSSE ; GLT-1 ; UNF ; GH11 ; Series U20C310
Spiral Point Tap; 5/16″ - 24 ; 3.543″ OAL ; HSSE ; TiAlN ; GH11 ; Series U20C310
| Thread Standard | UNF | Tool Type | Rekord B-VA |
| Thread Diameter Size (TDZ) | 5/16″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 24 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | GH11 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Overall Length (OAL) | 3.543″ | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | BU20C344 |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord B-VA design is typically for through hole applications in stainless steel and steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.057
