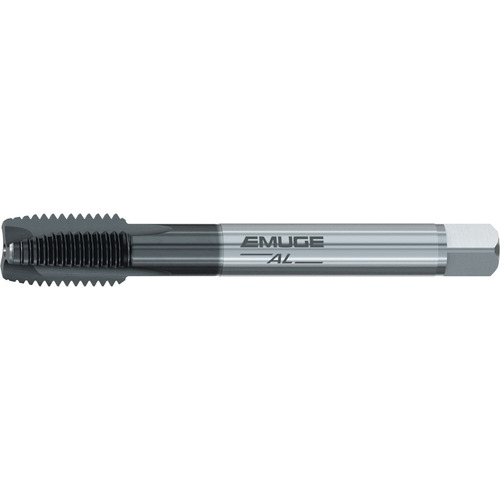

Spiral Point Tap; 3/4″ -16 × 4.331″ OAL ; HSSE ; GLT-8 ; UNF ; 2B ; Series U20S800
Spiral Point Tap; 3/4″ - 16 ; 4.331″ OAL ; HSSE ; DLC ; 2B ; Series CU20S800
| Thread Standard | UNF | Tool Type | Rekord B-AL |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 16 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2B | Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Overall Length (OAL) | 4.331″ | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | DLC | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | CU20S800 |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord B-AL tap is designed for wrought aluminum materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.332
