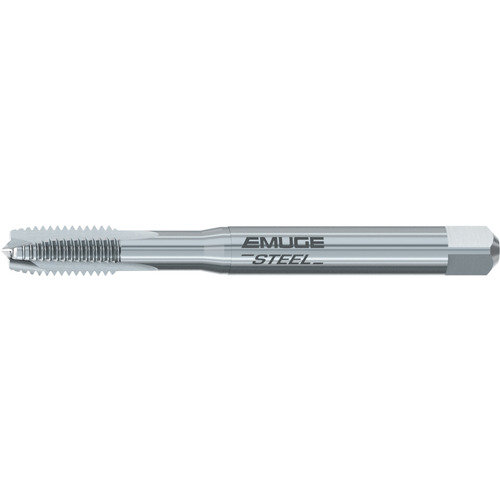

Spiral Point Tap; M8 x1.25 mm × 90 mm OAL ; HSSE ; Bright ; Metric ; 6H ISO 2
Spiral Point Tap; M8 × 1.25 mm ; 90 mm OAL ; HSSE ; Uncoated ; ISO 2 | 6H
| Thread Standard | Metric | Tool Type | Rekord B |
| Thread Diameter Size (TDZ) | M8 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 1.25 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H | Connection Diameter Machine Side (DCONMS) | 8 mm |
| Overall Length (OAL) | 90 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Left Hand |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | B0208950 |
| Standard | DIN |
Product Features
| Remarks | • The Enorm Steel design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
