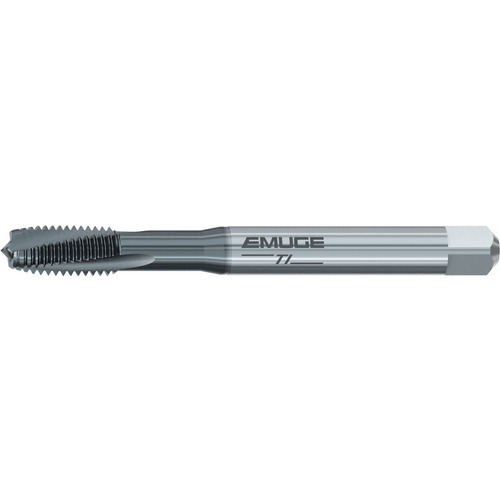

Spiral Point Tap; M2 x0.4 mm × 45 mm OAL ; HSSE ; Nitride ; Metric ; 6HX
Spiral Point Tap; M2 × 0.4 mm ; 45 mm OAL ; HSSE ; 6HX ; Series B0309601
| Thread Standard | Metric | Applicable Material | | Super-Alloys / Titanium | |
| Thread Size | M2 × 0.4 | Application | Blind Hole |
| Thread Diameter Size (TDZ) | M2 | Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Thread Pitch (TP) | 0.4 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Tolerance Class (TCTR) | 6HX | Style | Spiral Point |
| Overall Length (OAL) | 45 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4P-5P | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
| Standard | DIN | Series/List # | B0309601 |
| Tool Type | Rekord C-TI |
Product Features
| Remarks | • Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials. • Longer tool life and more consistent thread quality. • Best suited for through hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
