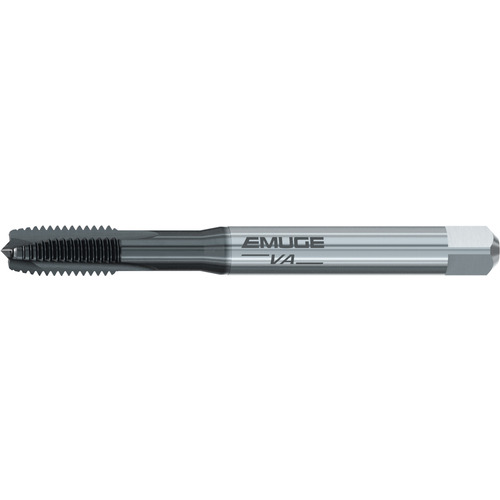

Spiral Point Tap; M2.5 x0.45 mm × 50 mm OAL ; HSSE ; GLT-1 ; Metric ; 6H ISO 2
Spiral Point Tap; M2.5 × 0.45 mm ; 50 mm OAL ; HSSE ; TiAlN ; ISO 2 | 6H ; Series B020C300
| Thread Standard | Metric | Tool Type | Rekord B-VA |
| Thread Diameter Size (TDZ) | M2.5 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 0.45 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H | Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Overall Length (OAL) | 50 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
| Standard | DIN | Series/List # | B020C300 |
Product Features
| Remarks | • Rekord B-VA design is typically for through hole applications in stainless steel and steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.1
