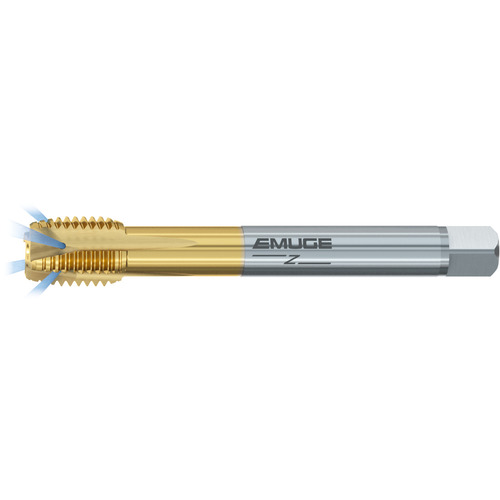

Spiral Point Tap; M16 x1.5 mm × 100 mm OAL ; HSSE PM ; TiN ; Metric ; 6HX ; Series 1088F01
Spiral Point Tap; M16 × 1.5 mm ; 100 mm OAL ; HSSE-PM ; TiN ; 6HX ; Series 1088F01
| Thread Standard | Metric | Tool Type | Rekord B-Z |
| Thread Diameter Size (TDZ) | M16 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 1.5 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Overall Length (OAL) | 100 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE-PM | Series/List # | C1088F01 |
| Standard | DIN |
Product Features
| Remarks | • Rekord B-Z design is typically for through hole applications in long-chipping materials such as stainless steel, steel and aluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
