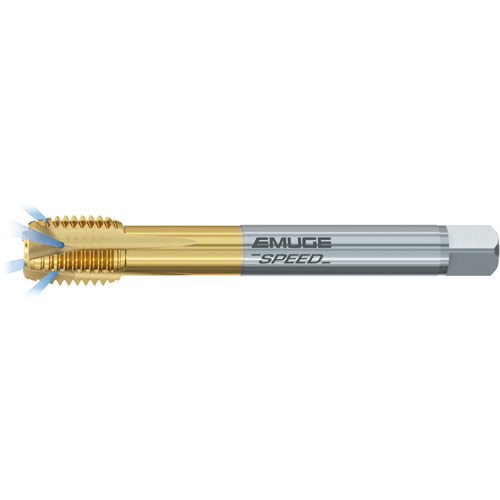

Spiral Point Tap; M14 x1.5 mm × 100 mm OAL ; HSSE PM ; TiN ; Metric ; 6HX ; Series 3258F01
Spiral Point Tap; M14 × 1.5 mm ; 100 mm OAL ; HSSE-PM ; TiN ; 6HX ; Series 3258F01
| Thread Standard | Metric | Tool Type | Rekord B-Speed |
| Thread Diameter Size (TDZ) | M14 | Applicable Material | | Universal Materials | |
| Thread Pitch (TP) | 1.5 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 11 mm |
| Overall Length (OAL) | 100 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE-PM | Series/List # | C3258F01 |
| Standard | DIN |
Product Features
| Remarks | • Speed taps are able to operate at higher cutting speeds than conventional designs. • Longer tool life and more consistent thread quality. • Speed Taps reduce threading cycle times. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
