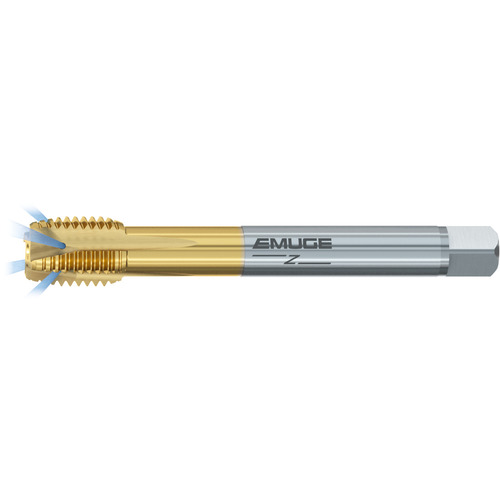

Spiral Point Tap; 5/8″ -18 × 3.937″ OAL ; HSSE PM ; TiN ; UNF ; 2BX ; Series 088F01
Spiral Point Tap; 5/8″ - 18 ; 3.937″ OAL ; HSSE-PM ; TiN ; 2BX ; Series 088F01
| Thread Standard | UNF | Tool Type | Rekord B-Z |
| Thread Diameter Size (TDZ) | 5/8″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 18 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2BX | Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Overall Length (OAL) | 3.937″ | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE-PM | Series/List # | CU088F01 |
| Standard | DIN | ANSI |
Product Features
| Remarks | • Rekord B-Z design is typically for through hole applications in long-chipping materials such as stainless steel, steel and aluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.184
