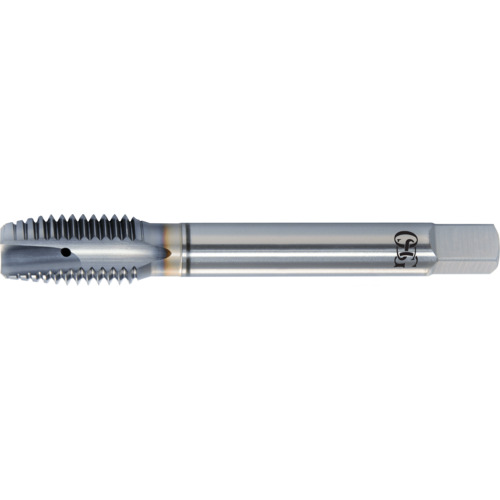

M12 × 1.75 D6 3S/P VC10 TAP-TICN
Spiral Point Tap; M12 × 1.75 mm ; 110 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; D6 ; Series 350
| Thread Standard | Metric | Flute Count (NOF) | 3 |
| Thread Size | M12 × 1.75 | Cutting Edge Material | HSS-PM |
| Thread Diameter Size (TDZ) | M12 | Tool Type | High Performance Tap |
| Thread Pitch (TP) | 1.75 mm | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | D6 | Connection Diameter Machine Side (DCONMS) | 9.32 mm |
| Usable Length (LU) | 32 mm | Thread Cutting Part Length (THL) | 21 mm |
| Overall Length (OAL) | 110 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4.5P-5.5P | Measurement Type | Metric |
| Coating | Vanadium | Series/List # | 350 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.75000
Package Height
.65000
Package Weight
0.13
