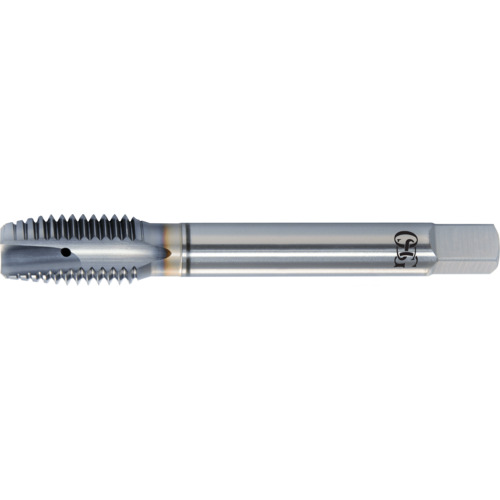

M8 × 1.25 D5 3S/P VC10 TAP-TICN
Spiral Point Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; D5 ; Series 350
| Thread Standard | Metric | Flute Count (NOF) | 3 |
| Thread Size | M8 × 1.25 | Cutting Edge Material | HSS-PM |
| Thread Diameter Size (TDZ) | M8 | Tool Type | High Performance Tap |
| Thread Pitch (TP) | 1.25 mm | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | D5 | Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Usable Length (LU) | 35 mm | Thread Cutting Part Length (THL) | 15 mm |
| Overall Length (OAL) | 90 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4.5P-5.5P | Measurement Type | Metric |
| Coating | Vanadium | Series/List # | 350 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.40000
Package Width
.45000
Package Height
.45000
Package Weight
.0600
