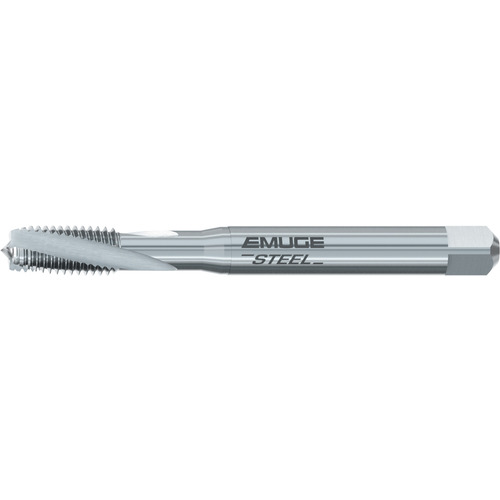

Spiral Point Tap; M2.5 x0.45 mm × 50 mm OAL ; HSSE ; Bright ; Metric ; 6H ; Series 451000
Spiral Point Tap; M2.5 × 0.45 mm ; 50 mm OAL ; HSSE ; Uncoated ; 6H ; Series 451000
| Thread Standard | Metric | Standard | DIN | ANSI |
| Thread Size | M2.5 × 0.45 | Tool Type | Rekord D |
| Thread Diameter Size (TDZ) | M2.5 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 0.45 mm | Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Helix Angle (FHA) | 15 Degrees |
| Overall Length (OAL) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Series/List # | B0451000 |
| Cutting Edge Material | HSSE |
Product Features
| Remarks | • Rekord D tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
