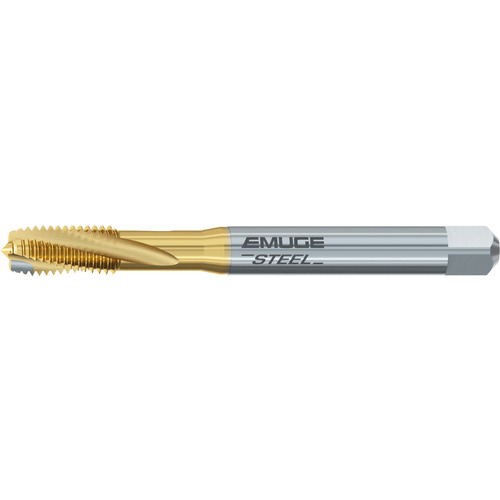

Spiral Point Tap; M10 x1.5 mm × 100 mm OAL ; HSSE ; TiN ; Metric ; 6H ; Series 401400
Spiral Point Tap; M10 × 1.5 mm ; 100 mm OAL ; HSSE ; TiN ; 6H ; Series 401400
| Thread Standard | Metric | Standard | DIN | ANSI |
| Thread Size | M10 × 1.5 | Tool Type | Rekord DF |
| Thread Diameter Size (TDZ) | M10 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Helix Angle (FHA) | 15 Degrees |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P | Coolant Supply Property (CSP) | External |
| Coating | TiN | Series/List # | 401400 |
| Cutting Edge Material | HSSE |
Product Features
| Remarks | • Rekord DF tap is a slow spiral tap with an additional "F" style lip correction that helps create tightly rolled chip formations in blind hole applications. • Longer tool life and more consistent thread quality. • Chipbreaker point geometry eliminates chip bird nesting | Country of Origin | Germany |
Shipping Info
Package Weight
.990
