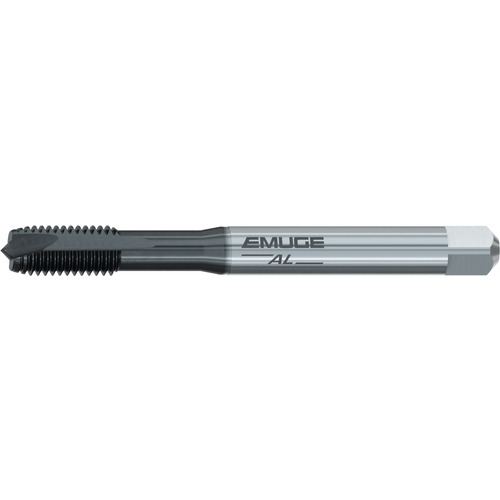

Spiral Point Tap; M6 x1 mm × 90 mm OAL ; HSSE ; GLT-8 ; Metric ; 6H ; Series 020S800
Spiral Point Tap; M6 x1 mm × 90 mm OAL ; HSSE ; GLT-8 ; Metric ; | 6H | ; Series 020S800
| Thread Standard | Metric | Standard | DIN | ANSI |
| Thread Size | M6 × 1 | Tool Type | Rekord B-AL |
| Thread Diameter Size (TDZ) | M6 | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6H | Connection Diameter Machine Side (DCONMS) | 8 mm |
| Overall Length (OAL) | 90 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | GLT-8 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E | Series/List # | 020S800 |
Product Features
| Remarks | • Rekord B-AL tap is designed for wrought aluminum materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
