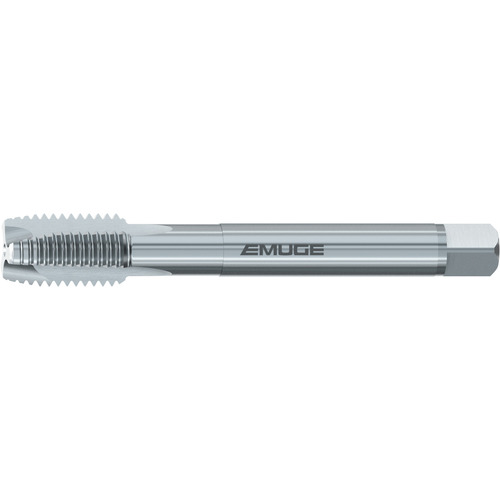

Spiral Point Tap; 1/2″ -20 × 3.937″ OAL ; 4 FL ; HSSE ; Nitride ; UNF ; 3BX ; Series U206511
Spiral Point Tap; 1/2″ - 20 ; 3.937″ OAL ; 4 FL ; HSSE ; Nitride ; 3BX ; Series CU206511

| Thread Standard | UNF | Standard | DIN | ANSI |
| Thread Size | 1/2″ - 20 | Tool Type | Rekord B-Aero |
| Thread Diameter Size (TDZ) | 1/2″ | Applicable Material | | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 20 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 3BX | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Overall Length (OAL) | 3.937″ | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | Nitride | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Series/List # | CU206511 |
| Cutting Edge Material | HSSE |
Product Features
| Remarks | • Rekord B-AERO tap is designed for through hole applications in tough, aerospace materials with high tensile strength.
• Longer tool life and more consistent thread quality.
• A negative rake angle provides a stronger cutting edge for maximum tool life. | Country of Origin | Germany |
