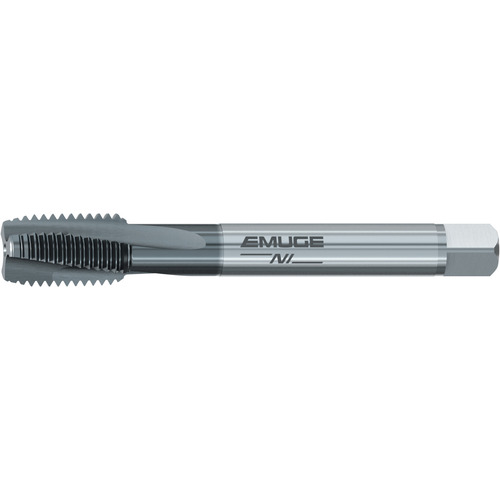

Spiral Point Tap; M20 x2.5 mm × 140 mm OAL ; 3 FL ; HSSE PM ; TiCN ; Metric ; 6HX ; Series 438J401
Spiral Point Tap; M20 × 2.5 mm ; 140 mm OAL ; 3 FL ; HSSE-PM ; TiCN ; 6HX ; Series 438J401
| Thread Standard | Metric | Standard | DIN |
| Thread Size | M20 × 2.5 | Tool Type | Rekord DF-NI |
| Thread Diameter Size (TDZ) | M20 | Applicable Material | | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 2.5 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Overall Length (OAL) | 140 mm | Flute Helix Angle (FHA) | 10 Degrees |
| Chamfer | 2P-3P | Cutting Direction (HAND) | Right Hand |
| Coating | TiCN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Series/List # | C438J401 |
| Cutting Edge Material | HSSE-PM |
Product Features
| Remarks | • Rekord DF-NI semi-bottoming taps with VHC - Variable Helix Correction - A specially ground "F" relief geometry in the primary cutting zone, that generates a smaller and tightly rolled chip formation • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
