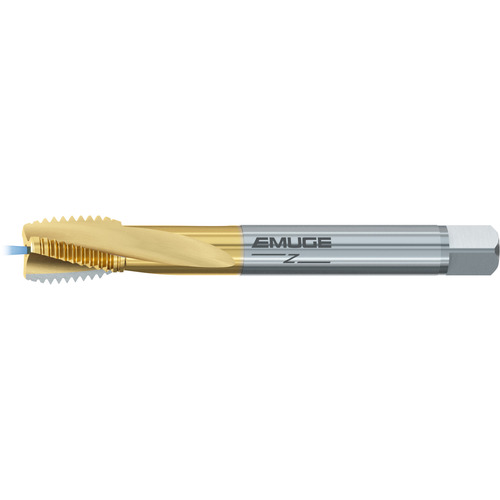

Spiral Point Tap; M10 x1 mm × 90 mm OAL ; HSSE ; TiN ; Metric ; 6HX ; Series 4253701
Spiral Point Tap; M10 × 1 mm ; 90 mm OAL ; HSSE ; TiN ; 6HX ; Series C4253701
| Thread Standard | Metric | Standard | DIN |
| Thread Size | M10 × 1 | Tool Type | Rekord D-Z-BF |
| Thread Diameter Size (TDZ) | M10 | Applicable Material | | Stainless Steel | |
| Thread Pitch (TP) | 1 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Overall Length (OAL) | 90 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Chamfer | 2P-3P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE | Series/List # | C4253701 |
Product Features
| Remarks | • Rekord D-Z-BF tap is a slow spiral, chip breaker design for blind holes, especially CNC machines with synchronous feed control. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
