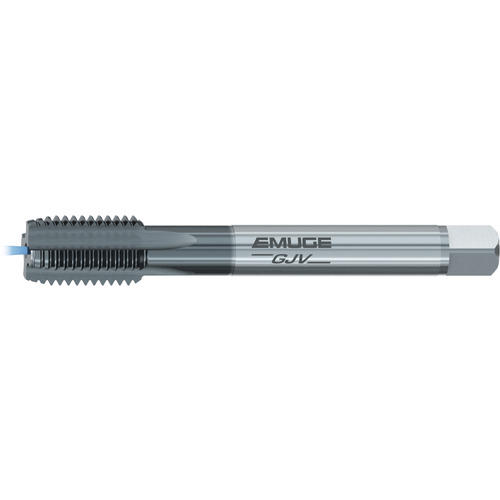

Spiral Point Tap; M12 x1.75 mm × 110 mm OAL ; HSSE PM ; TiCN ; Metric ; 6HX ; Series 195R501

‹ ›

Spiral Point Tap; M12 x1.75 mm × 110 mm OAL ; HSSE PM ; TiCN ; Metric ; 6HX ; Series 195R501

Spiral Point Tap; M12 × 1.75 mm ; 110 mm OAL ; HSSE-PM ; TiCN ; 6HX ; Series 195R501

Item # ER4514554

Brand: Emuge-Franken

MFG #: C195R501.0112

Legacy Part #: ER4514554

TradeName: EMUGE - GJV

Quantity Available

Thread Standard

Metric

Standard

DIN

Thread Size

M12 × 1.75

Tool Type

Rekord A-GJV

Thread Diameter Size (TDZ)

M12

Applicable Material

| Cast Iron | Hard Materials |

Thread Pitch (TP)

1.75 mm

Application

Blind Hole

Thread Tolerance Class (TCTR)

6HX

Connection Diameter Machine Side (DCONMS)

9 mm

Overall Length (OAL)

110 mm

Cutting Direction (HAND)

Right Hand

Chamfer

‎2P-3P

Coolant Supply Property (CSP)

Coolant Thru

Coating

TiCN

Series/List #

C195R501

Cutting Edge Material

HSSE-PM

Product Features

Remarks

• Rekord A-GJV is a straight flute tap designed for cast iron with vermicular graphite such as CGI & ADI material. • Longer tool life and more consistent thread quality. • This design is suitable for through & blind hole applications.

Country of Origin

Germany

Shipping Info

Package Weight

.990
