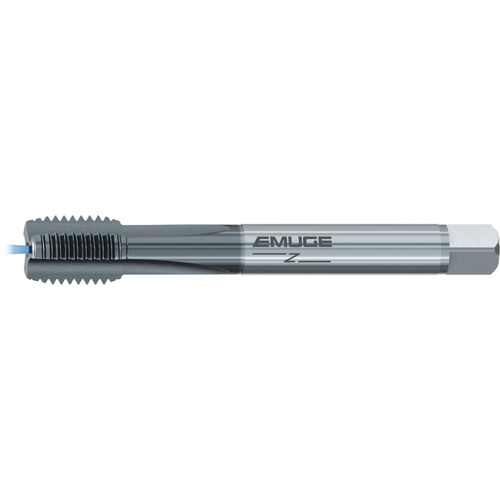

Spiral Point Tap; M27 x3 mm × 160 mm OAL ; HSSE ; TiCN ; Metric ; 6HX ; Series 1959401
Spiral Point Tap; M27 × 3 mm ; 160 mm OAL ; HSSE ; TiCN ; 6HX ; Series 1959401
| Thread Standard | Metric | Standard | DIN |
| Thread Size | M27 × 3 | Tool Type | Rekord A-Z |
| Thread Diameter Size (TDZ) | M27 | Applicable Material | | Stainless Steel | |
| Thread Pitch (TP) | 3 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Overall Length (OAL) | 160 mm | Style | Spiral Point |
| Chamfer | 2P-3P | Cutting Direction (HAND) | Right Hand |
| Coating | TiCN | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE | Series/List # | C1959401 |
Product Features
| Remarks | • Rekord A-Z is a straight flute for short chipping materials in through or blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
