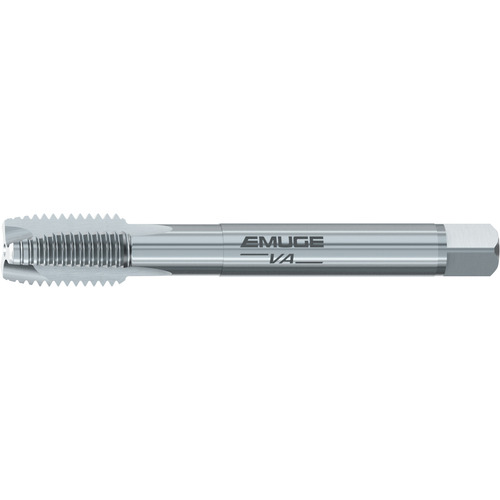

Spiral Point Tap; M16 x1.5 mm × 100 mm OAL ; HSSE ; Nitride ; Metric ; 6G
| Thread Standard | MF | Applicable Material | | Steel | Stainless Steel | |
| Thread Diameter Size (TDZ) | M16 | Application | Blind Hole |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 12 mm |
| Thread Tolerance Class (TCTR) | 6G | Style | Spiral Point |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4P-5P | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | C0203020 |
| Tool Type | Rekord B-VA |
Product Features
| Remarks | • Rekord B-VA design is for through & blind hole applications in stainless steel and steel alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.9900
