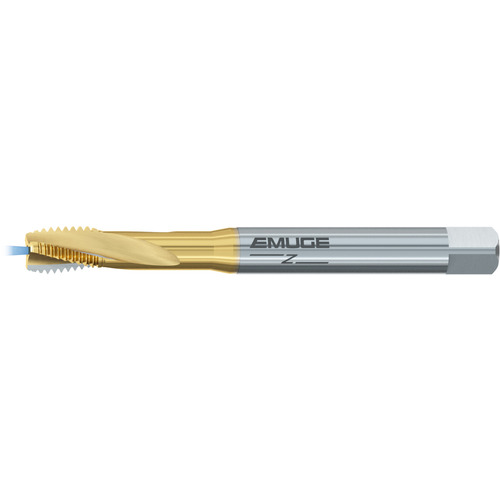

Spiral Point Tap; 5/16″ -18 × 3.543″ OAL ; 3 FL ; HSSE ; TiN ; UNC ; 2BX ; Series U573701
Spiral Point Tap; 5/16″ - 18 ; 3.543″ OAL ; 3 FL ; HSSE ; TiN ; 2BX ; Series BU573701
| Thread Standard | UNC | Standard | DIN | ANSI |
| Thread Size | 5/16″ - 18 | Tool Type | Rekord D-Z-BF |
| Thread Diameter Size (TDZ) | 5/16″ | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 18 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2BX | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Overall Length (OAL) | 3.543″ | Style | Spiral Point |
| Chamfer | 2P-3P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 3 | Series/List # | BU573701 |
| Cutting Edge Material | HSSE |
Product Features
| Remarks | • Rekord D-Z-BF tap with CBTz geometry is a slow spiral, chip breaker design for blind holes, especially CNC machines with synchronous feed control. • Longer tool life and more consistent thread quality. • Chipbreaker point geometry eliminates chip bird nesting | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
