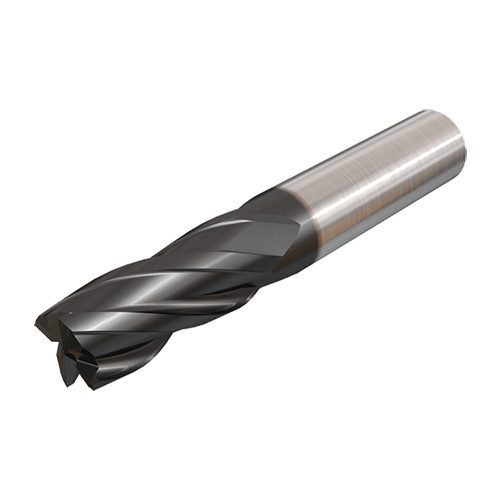

EC070A20-4C07 IC08
SQ End Mill; 7 mm Dia. × 20 mm LOC × 7 mm Shank Dia. × 60 mm OAL ; 4 FL ; 20 mm LBS ; Carbide ; Uncoated

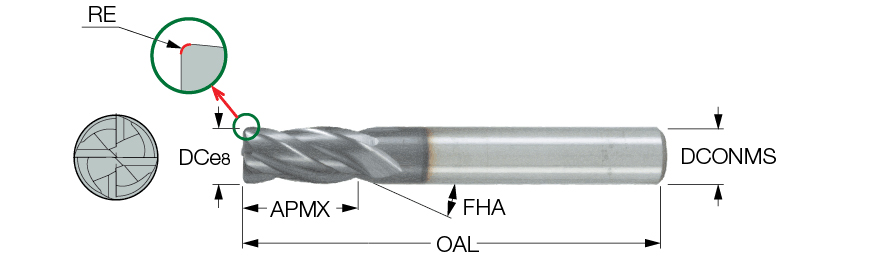

| Cutting Diameter (DC) | 7 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 20 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 60 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 20 mm | Cutting Diameter Tolerance | e8 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
Product Features
| Family Description | 4 flute, 30° helix medium length solid carbide endmills with different radii dimensions | Country of Origin | Israel |
Shipping Info
Package Weight
0.072
