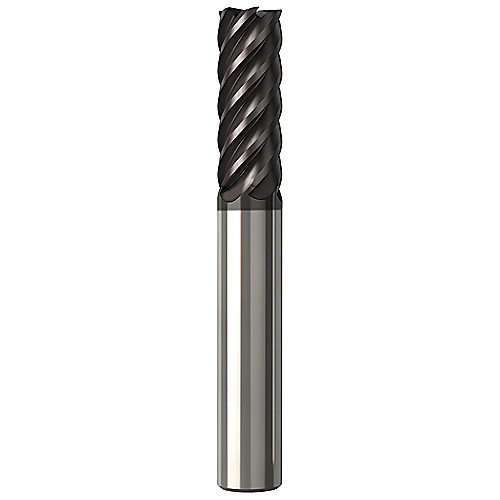

JS520120D2C.3Z6-NXT JABRO ENDMILL
SQ End Mill; 12 mm Dia. × 25 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 6 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 25 mm | End Shape | Chamfer |
| Overall Length (OAL) | 83 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.12 mm |
| Coating | NXT | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 6 | Series/List # | JS520 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.265
