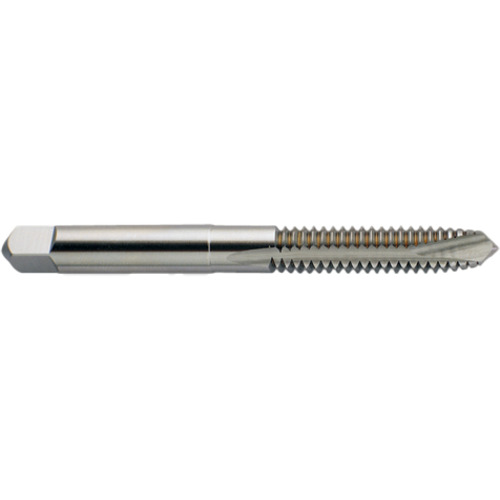

Spiral Point Tap; #10 - 32 ; 2.38″ OAL ; 2 FL ; HSS ; TiN ; +0.005″ ; Series T8226
| Thread Standard | UNF | Tool Type | General Purpose |
| Thread Size | #10 - 32 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Diameter Size (TDZ) | #10 | Thread Cutting Part Length (THL) | 0.88″ |
| Threads per Inch (TPI) | 32 | Tapping Prehole Diameter (Pre-hole) | 0.1616″ |
| Thread Tolerance Class (TCTR) | +0.005″ | Flute Type | Spiral Point |
| Usable Length (LU) | 0.88″ | End Shape | Plug |
| Overall Length (OAL) | 2.38″ | Shank Type | Square |
| Chamfer | 4P-5P | Coolant Supply Property (CSP) | External |
| Coating | TiN | Length Group | 3xD |
| Flute Count (NOF) | 2 | Square Size | 0.152″ |
| Cutting Edge Material | HSS | Measurement Type | Wire Gauge |
| Standard | 302 | Series/List # | T8226 |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.02115
