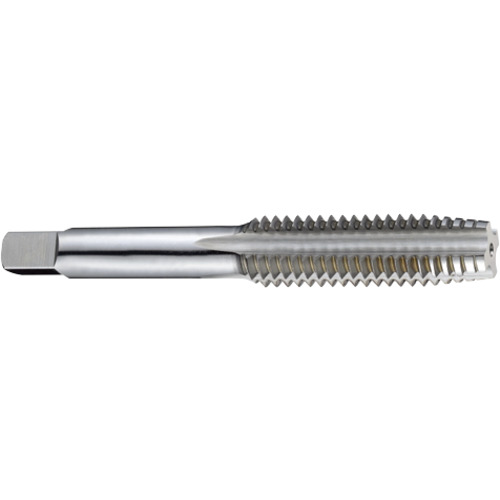

Straight Flute Tap; #6 - 40 ; 2″ OAL ; 2 FL ; HSS ; Bright ; H2 ; Series T7A16
Straight Flute Tap; #6 - 40 ; 2″ OAL ; 2 FL ; HSS ; Uncoated ; H2 ; Series T7A16
| Thread Diameter Size (TDZ) | #6 | Coating | Uncoated |
| Threads per Inch (TPI) | 40 | Tapping Prehole Diameter (Pre-hole) | 0.1153″ |
| Thread Standard | UNF | Flute Length | 11/16″ |
| Overall Length (OAL) | 2″ | Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 0.69″ | End Shape | Plug |
| Usable Length (LU) | 0.69″ | Shank Type | Square |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | H2 | Square Size | 0.11″ |
| Standard | 302 | Measurement Type | Wire Gauge |
| Tool Type | Hand Tap | Series/List # | T7A16 |
| Chamfer | 4P-5P | Thread Size | #6 - 40 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3
Package Width
0.4375
Package Height
0.375
Package Weight
0.01
