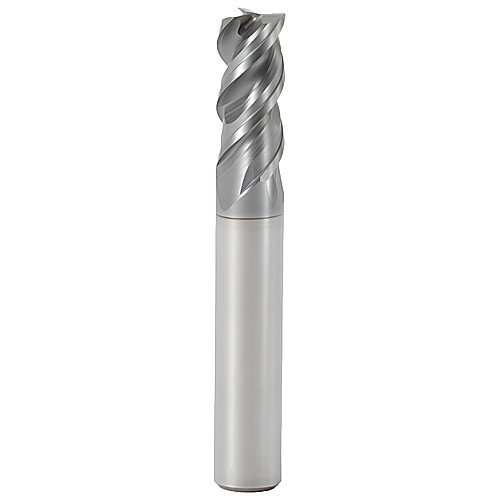

553160R100Z3.0-SIRON-AW JABRO SOLID 2 END MILL
SQ End Mill; 16 mm Dia. × 34 mm LOC × 16 mm Shank Dia. × 90 mm OAL ; 3 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 34 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 90 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | SIRON-A | Decimal Equivalent | 0.6299″ |
| Flute Count (NOF) | 3 | Series/List # | JS553 |
| Flute Helix Angle (FHA) | 48 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.507
