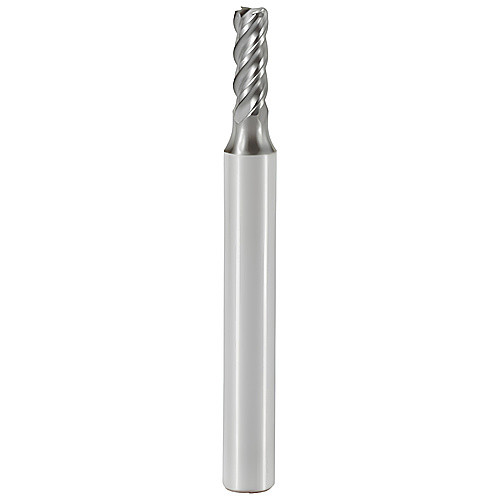

JHP951030F2R020.3Z3-SIRA JABRO HPM
SQ End Mill; 3 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 3 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 8 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 50 mm | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | SIRON-A | Decimal Equivalent | 0.1181″ |
| Flute Count (NOF) | 3 | Series/List # | JHP951 |
| Flute Helix Angle (FHA) | 40 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.2 mm |
| Shank Type | Round |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.042
