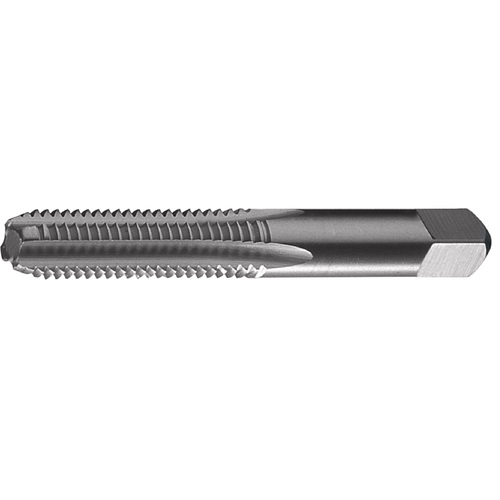

M6x1.0 Flute Carbon Steel Standard Bottoming Chamfer Hand Tap- Bright
Straight Flute Tap; M6 × 1 mm ; 63.5 mm OAL ; Carbon Steel ; Uncoated ; Series 1698
| Thread Diameter Size (TDZ) | M6 | Coating | Uncoated |
| Thread Pitch (TP) | 1 mm | Flute Type | Straight |
| Thread Standard | Metric | End Shape | Square |
| Overall Length (OAL) | 63.5 mm | Style | Bottoming |
| Thread Cutting Part Length (THL) | 25.4 mm | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 6.48 mm | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Length Group | 1.5D |
| Cutting Edge Material | Carbon Steel | Measurement Type | Metric |
| Tool Type | Hand Tap | Series/List # | 1698 |
| Chamfer | Bottoming | Thread Size | M6 × 1 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.027
