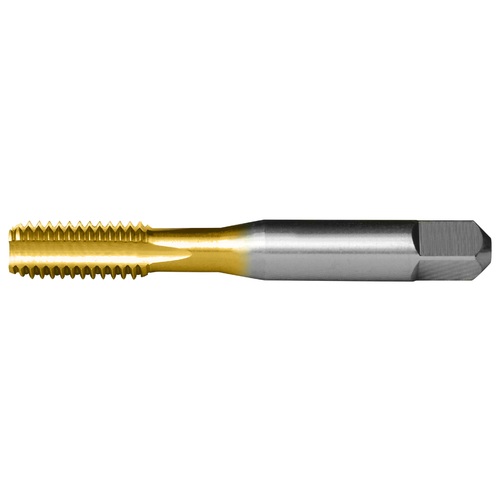

#8-32 UNC 4 Flute H3 HSS Standard Bottoming Chamfer General Purpose Hand Tap- TiN
Straight Flute Tap; #8 - 32 ; 2.13″ OAL ; 4 FL ; HSS ; TiN ; H3 | 2B ; Series 1003-TN
| Thread Diameter Size (TDZ) | #8 | Chamfer | Bottoming |
| Threads per Inch (TPI) | 32 | Coating | TiN |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2.13″ | End Shape | Square |
| Thread Cutting Part Length (THL) | 0.38″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.168″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Application | General Purpose | Length Group | 2D |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1003-TN |
| Thread Tolerance Class (TCTR) | H3 | 2B | Thread Size | #8 - 32 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.011
