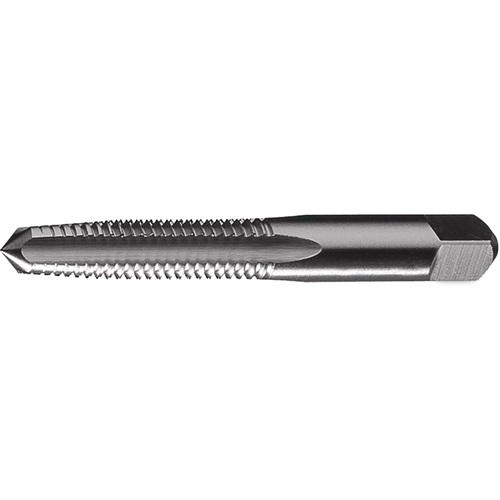

M18x2.5 4 Flute HSS Standard Plug Chamfer Hand Tap- Bright
Straight Flute Tap; M18 × 2.5 mm ; 102.39 mm OAL ; 4 FL ; HSS ; Uncoated ; Series 1691
| Thread Diameter Size (TDZ) | M18 | Coating | Uncoated |
| Thread Pitch (TP) | 2.5 mm | Flute Type | Straight |
| Thread Standard | Metric | End Shape | Square |
| Overall Length (OAL) | 102.39 mm | Style | Plug |
| Thread Cutting Part Length (THL) | 46.04 mm | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 13.77 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Length Group | 1.5D |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 1691 |
| Tool Type | Hand Tap | Thread Size | M18 × 2.5 |
| Chamfer | Plug |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.229
