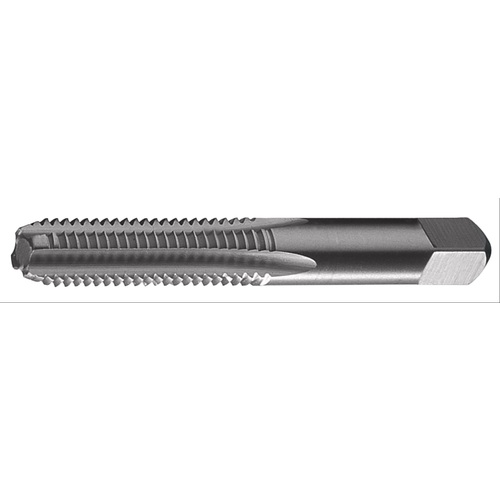

7/8-14 UNF 4 Flute HSS Standard Bottoming Chamfer Hand Tap- Bright
Straight Flute Tap; 7/8″ - 14 ; 4-11/16″ OAL ; 4 FL ; HSS ; Uncoated ; Series 1692
| Thread Diameter Size (TDZ) | 7/8″ | Coating | Uncoated |
| Threads per Inch (TPI) | 14 | Flute Type | Straight |
| Thread Standard | NF | End Shape | Square |
| Overall Length (OAL) | 4-11/16″ | Style | Bottoming |
| Thread Cutting Part Length (THL) | 2-7/32″ | Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Length Group | 1.5D |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1692 |
| Tool Type | Hand Tap | Thread Size | 7/8″ - 14 |
| Chamfer | Bottoming |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
.397
