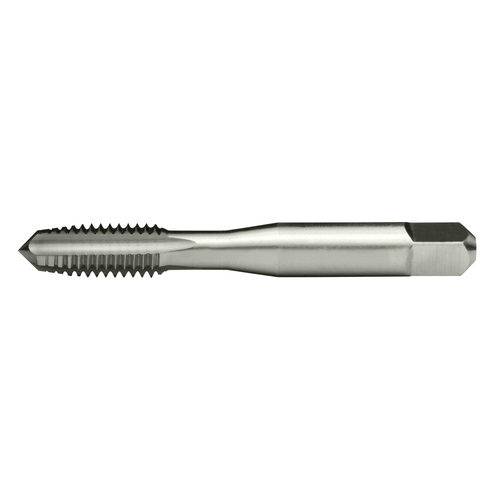

3/4-10 UNC 4 Flute H3 HSS Left Hand Plug Chamfer General Purpose Left Hand Tap- Bright
Straight Flute Tap; 3/4″ - 10 ; 4-1/4″ OAL ; 4 FL ; HSS ; Uncoated ; H3 | 2B ; Series 1002L
| Thread Diameter Size (TDZ) | 3/4″ | Chamfer | Plug |
| Threads per Inch (TPI) | 10 | Coating | Uncoated |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 4-1/4″ | End Shape | Square |
| Thread Cutting Part Length (THL) | 1.22″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand |
| Application | General Purpose | Length Group | 1.5D |
| Applicable Material | | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 1002L |
| Thread Tolerance Class (TCTR) | H3 | 2B | Thread Size | 3/4″ - 10 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.294
