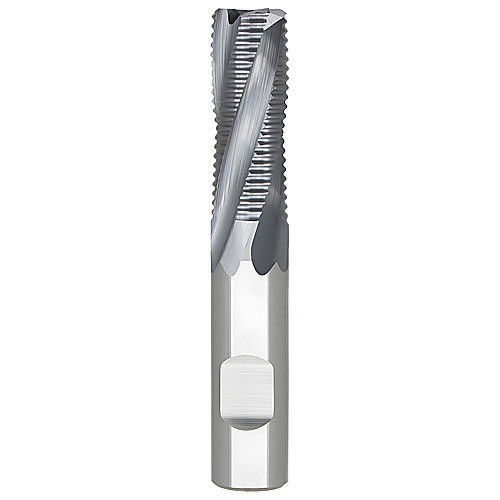

SR420-0.438-D1-C020.3-Z4 ALTIN
SQ End Mill; 7/16″ Dia. × 9/16″ LOC × 7/16″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 7/16″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 9/16″ | Applicable Material | | Stainless Steel | |
| Overall Length (OAL) | 2-1/2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.19
